Xcellence Series

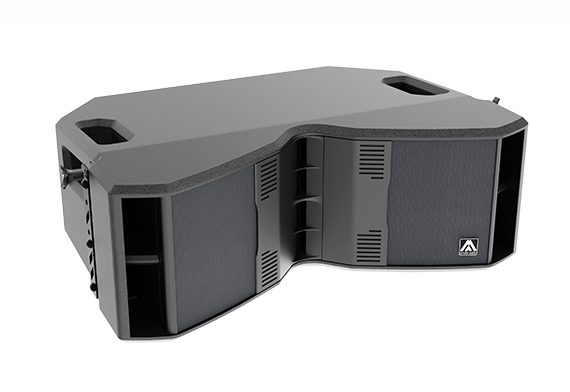

XA209P
2x 8" two-way passive line array element
SKU: XA209P
€ 3.333,55 incl. VAT
🇪🇸Ontworpen & geproduceerd in Barcelona, Spanje
Beschrijving
A compact passive line array featuring the latest acoustic technologies from the Xcellence series. Delivers signature clarity, definition and control in a streamlined enclosure. Key features include integrated power and control presets with external amplifiers, exclusive high-performance waveguide, light neodymium components, and overvoltage protection exceeding 250V.
Specificaties
Weight24 kg
Program Power1400 W (LF) + 160 W (HF)
Impedance8Ω (LF) + 8Ω (HF)
SPL (1W/1m)104 dB (LF) / 112 dB (HF)
Maximum SPL (continuous/1m)135 dB (LF) / 134 dB (HF)
Frequency Response (-10dB)70 Hz - 1.8 kHz (LF) / 900 Hz - 19 kHz (HF)
LF Drivers2x 8" neodymium woofers (2" long excursion dual voice coil)
HF Drivers2x 1.7" HT polymer diaphragm, neodymium magnet compression drivers
Directivity (-6dB)95° (H) x 10° (V)
Dimensions (HxWxD)245 x 680 x 550 mm (excluding pins)
Weight24 kg
FinishMultilayer baltic birch plywood with black Polyurea coating
Grille1.5 mm powder coated steel with grey micro-foam cloth
RiggingStainless-steel black painted integrated rigging bars
Connectors1x Speakon NL4MP input / 1x Speakon NL4MP link
