Xcellence Series

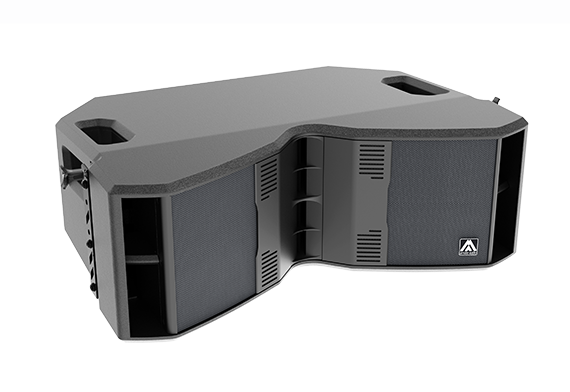

XA209
2x 8" two-way active self-powered line array element
SKU: XA209
€ 5.426,85 incl. VAT
🇪🇸Ontworpen & geproduceerd in Barcelona, Spanje
Beschrijving
The XA209 represents a new milestone in compact line array design, engineered with the latest acoustic technologies from the Xcellence series, delivering signature clarity, definition and control in a streamlined enclosure. Precision-crafted for impactful sound in any environment. Key features include integrated power and control presets, an exclusive high-performance waveguide, light neodymium components, and overvoltage protection exceeding 250V.
Specificaties
Weight26.7 kg
Amplifier Program Power2500 W (LF) + 500 W (HF) Class D Bi-amplified
Analog Input Nominal+8 dBu
Analog Input Maximum+20 dBu
Analog Input Impedance20 kΩ Balanced
Audio NetworkingDante, 1 channel, 48kHz
Mains PowerUniversal 85-265 V / 45-65 Hz
Average Current Draw3.3 A
SPL @ 1m135 dB musical program, 138 dB peak
DSP Processing64-bit processing unit with factory presets
AD/DA Converters24 bit - 48 kHz
PresetsFR FLAT, FR NEARFIELD, FR LONGTHROW, HPF90 FLAT, HPF90 NEARFIELD, HPF90 LONGTHROW
Frequency Response (-10dB)70 Hz - 19 kHz
LF Drivers2x 8" neodymium woofers (2" long excursion dual voice coil)
HF Drivers2x 1.7" HT polymer diaphragm, neodymium magnet compression drivers
Directivity (-6dB)95° (H) x 10° (V)
Dimensions (HxWxD)245 x 680 x 550 mm (excluding pins)
Weight26.7 kg
FinishMultilayer baltic birch plywood with black Polyurea coating
Grille1.5 mm powder coated steel with grey micro-foam cloth
RiggingStainless-steel black painted integrated rigging bars
Connectors1x XLR input / 1x XLR link / 1x AC PowerCon input / 1x AC PowerCon link / 1x EtherCon RJ45 input / 1x EtherCon RJ45 link
