Technical features
- Amplifier (program power): 2400 W (LF) + 600 W (HF) – Class D Bi-amplified
- Touchscreen interface
- Mains: Universal switch mode Power Supply 85-265 V / 45-65 Hz – Overvoltage protection > 250 V
- SPL (1m) 136 dB continuous, 139 dB peak
- Built-in DSP: 64 bit
- Presets: Built-in presets to cover the most standard applications + configurable user memories
- Frequency response (-10 dB): 60 Hz – 18 kHz
- LF: 2x 10″ neodymium woofers HF: 3″ titanium diaphragm neodymium driver
- Directivity (HxV):90º x 60º
- Dimensions (HxWxD): 704 x 330 / 505mm
- Weight: 32 kg

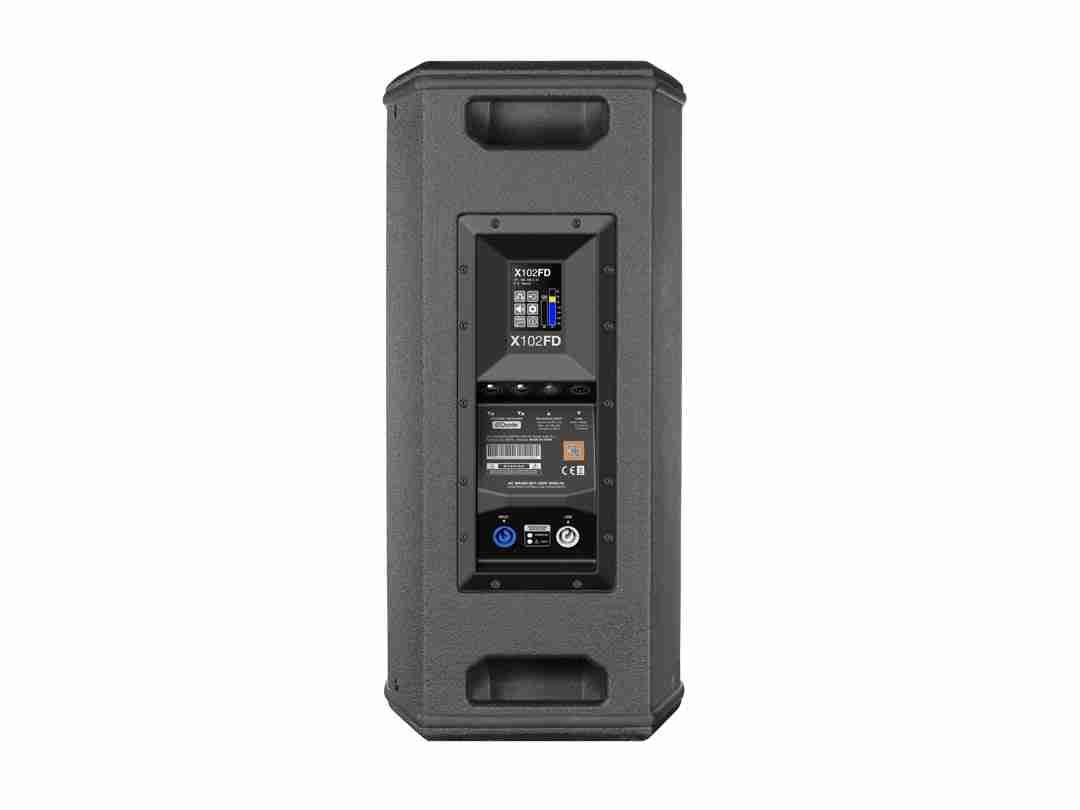

- Connections: 1x XLR input / 1x XLR link / 1x AC PowerCon input /
1x AC PowerCon link / 1x EtherCon RJ45 input / 1x EtherCon RJ45 link

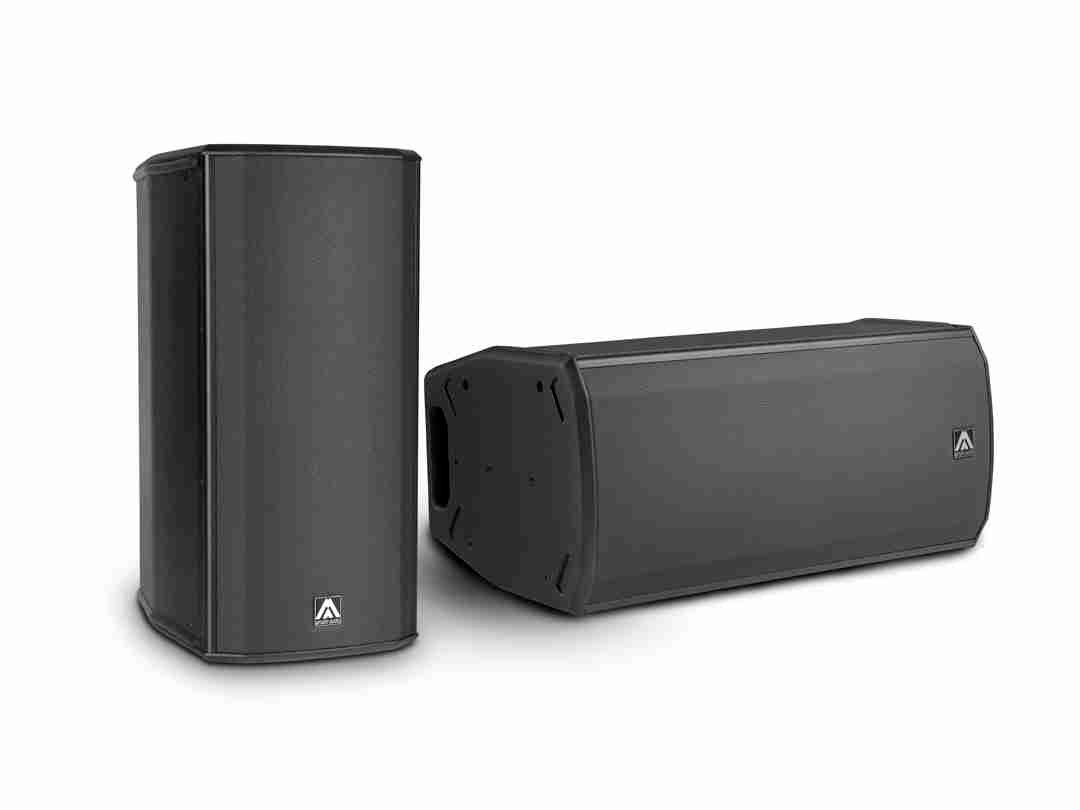

Physical features
- Multilayer Baltic birch plywood
- Front steel grille with grey micro-foam cloth
- High resistant bi-component black Polyurea® coating
- Rotatable horn, without tools
- Optional Dante card
